Waveshare

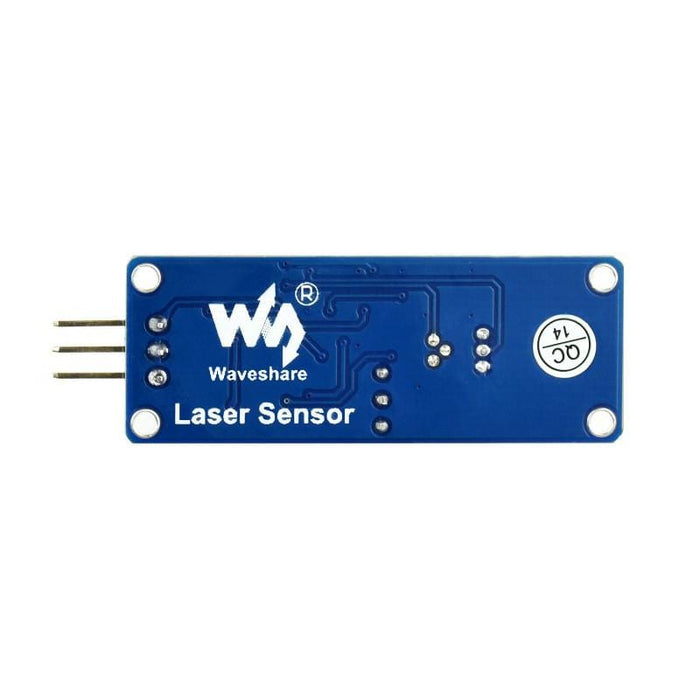

Laser Sensor

Laser Sensor

Regular price $6.55 USD
Regular price $10.40 USD Sale price $6.55 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

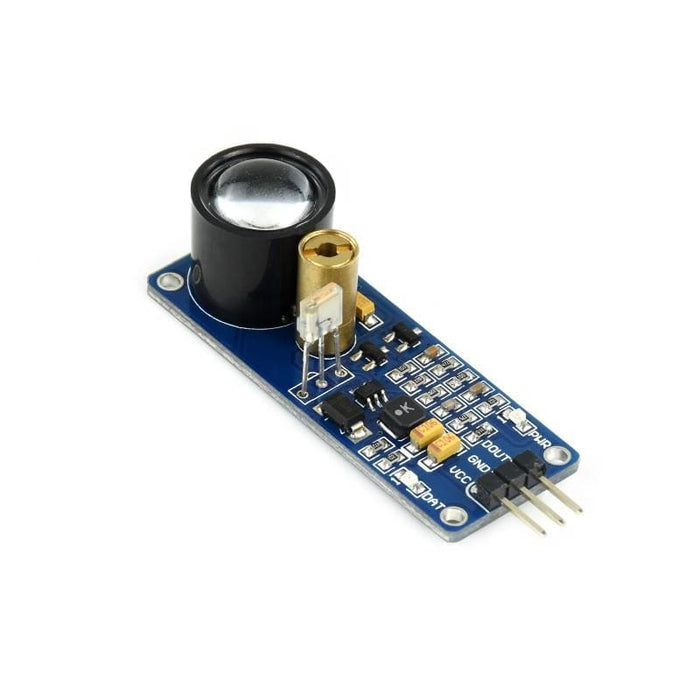

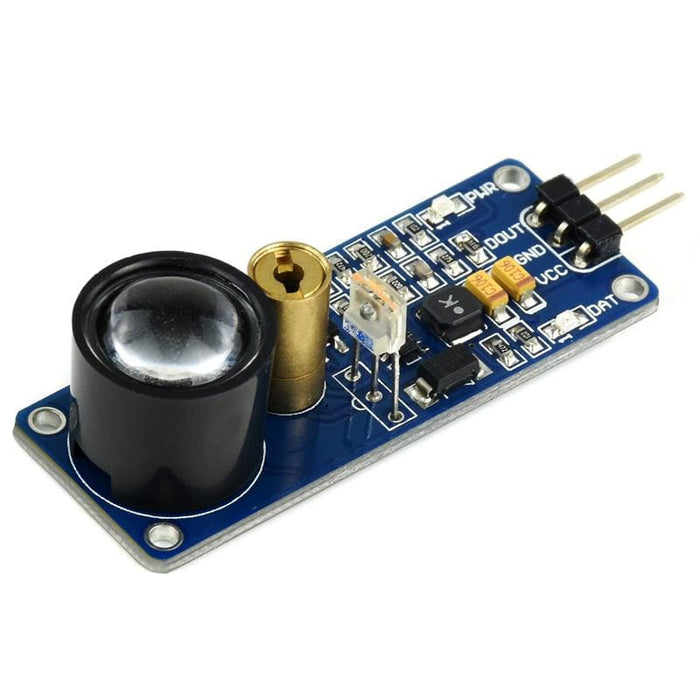

This laser sensor features a boost circuit and signal output indicator. It can function from an effective distance of 0.8m (typical, and around 1.5m (max).

This kind of sensor can be useful for object detection in robots and similar object sensing project needs. Output is digital (not analogue).

Note: Sensor does not come with a cable

Features

  • Boost circuit
  • Signal output indicator
  • M2 mount holes

Resources

  • Product Wiki, FAQ and manual

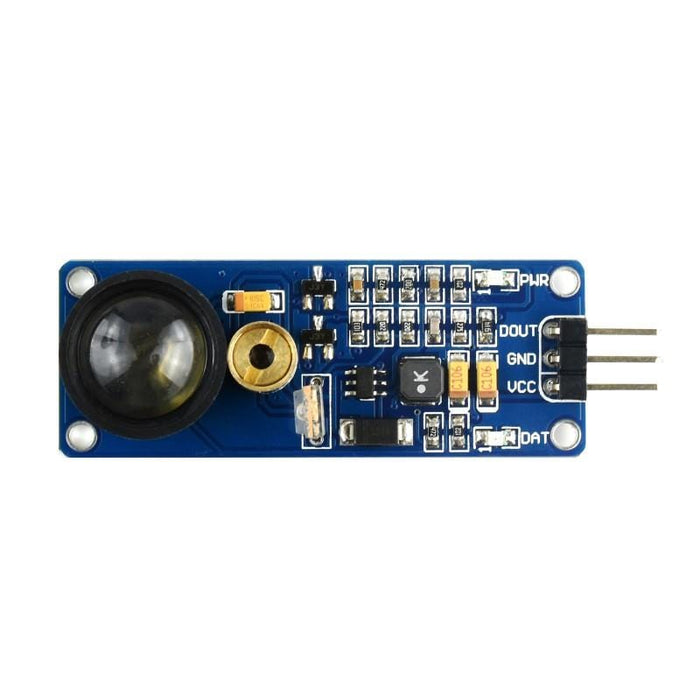

How to Use

In the case of working with an MCU:

  • VCC ↔ 2.5V ~ 5.0V
  • GND ↔ power supply ground
  • DOUT ↔ MCU.IO (digital output)

Specifications

  • Effective distance: 0.8m(typ), 1.5m(max)
  • Power: 2.5V ~ 5.0V
  • Dimension: 47.7mm * 17.9mm
  • Mounting holes size: 2.0mm

Application Examples

  • Obstacle detection
  • Pipeline counter
  • Smart robot
  • Obstacle-avoiding car
