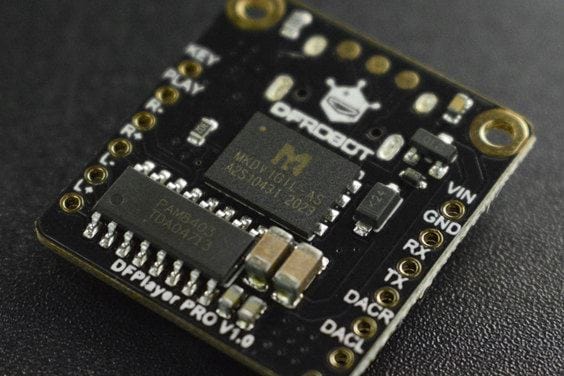

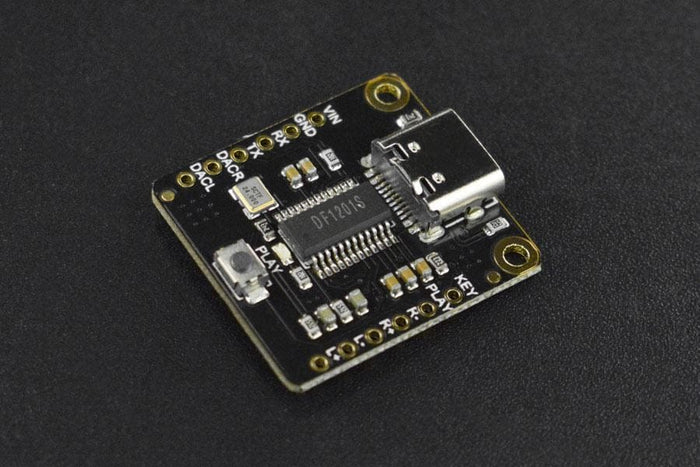

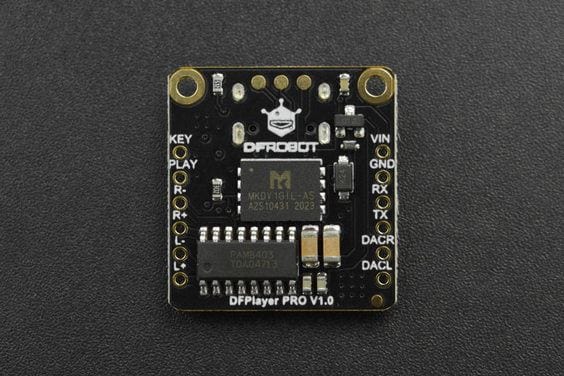

Here comes the DFPlayer Pro - a mini, simple but powerful MP3 Player!
This MP3 player module supports four controlling modes: Arduino, AT command, onboard buttons and ADKEY.
You can directly press the onboard button to play or switch music without using a controller. Moreover, this player module has 128MB of storage.
By using a USB cable, you can easily copy your favourite songs into this module to play them anywhere you want, or use it as a sound card for your PC or after connecting them.
Features
- On-board 128MB High-speed Storage
- Playback Switch by Button
- Dual-channel
- Support analog U-disk
Applications
DIY Plush Toys
Handmade Personalized Gift
Musical Alarm Clock
USB Sound Card
Specification
Power Supply: 3.3V~5V
Operating Current: >20mA
Storage: 128MB
Audio Format: MP3, WAV, WMA, FLAC, AAC, APE
Communication: UART
Operating Temperature: -20℃~70℃
Operating Humidity: 5%RH~95%RH

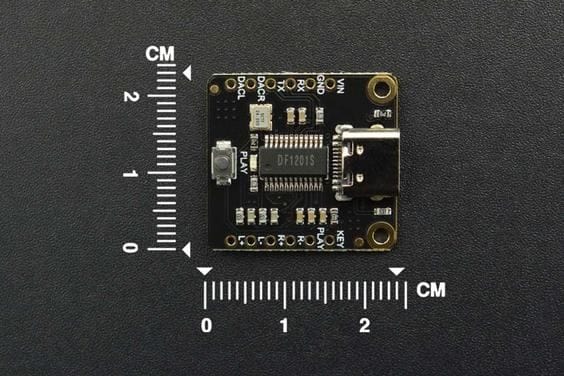

Dimension: 23*24.5mm/0.91*0.96”
Documents
Product wiki
Shipping List

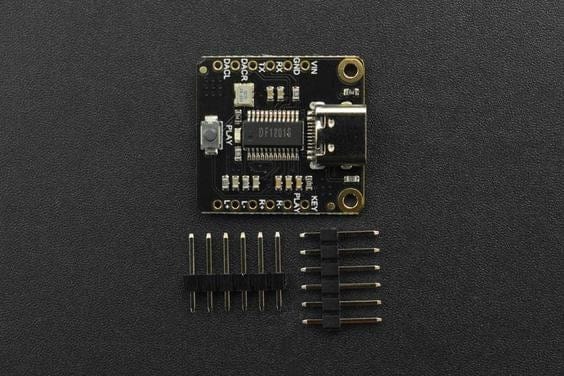

DFPlayer PRO - A MP3 Player x1
2.54-6P Black Single-Row Pin x2
