Panasonic

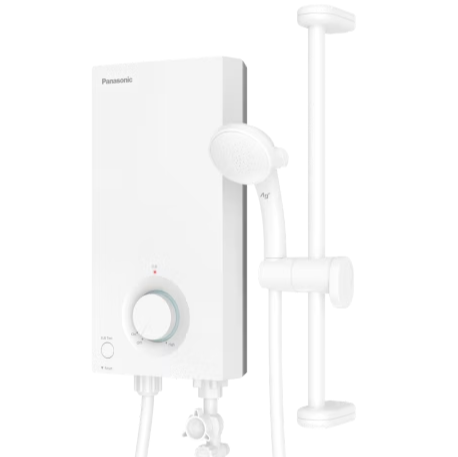

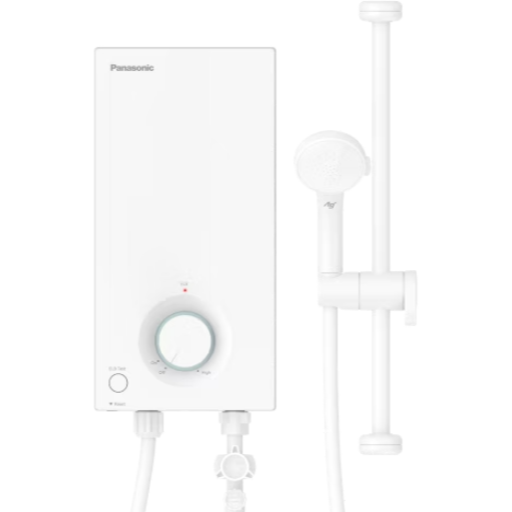

DH-3VS1SW INSTANT SHOWER HEATER
DH-3VS1SW INSTANT SHOWER HEATER
Couldn't load pickup availability
Safe & Clean Showers for Everyone
Joyful Shower, Protected Family
Playful bath times mean splashes and a humid bathroom. Protect your loved ones with 9 safety features against electric and fire hazards. Enjoy cleaner showers with Ag+ technology that stops bacteria growth to make every bath time worry-free and fun.
Family’s Safety First
Rest assured with 9 safety features that prioritise you and your family's safety, through technologies that provide water and heat resistance, as well as prevention against fire, burns, and electric shock.
Stay Protected Against Bacteria
The surface of the shower plate are coated with Ag+ Crystal Material to prevent bacteria growth in humid environments, ensuring you always have a clean and hygienic shower.
Sleek & Functional Design
The V Series is inspired by the timeless archetype design that is simple and intuitive to use while fitting effortlessly in every bathroom.
Specifications
| Basic Specification | PUMP/ NO PUMP | Non Pump |
| On/Off Power Switch | Knob | |
| Temperature Control | Rotation | |
| Power Supply | 220 V, 50 Hz | |
| Rated Power | 3.05 kW | |
| Water Pressure | Minimum | |
| 9.8kPa | ||
| Maximum | ||
| 380 kPa | ||
| Dimensions (H x W x D) mm | 380 x 190 x 82 | |
| Main Unit Weight (kg) | 1.41 kg | |
| Body Colour | White | |
| Rail | Rail | |
| ELB indication method | Red ELB light | |
| On/Off Power Switch | Knob | |
| Safety Features | 9 Safety Features | |
| 1. Water Splash Prood Case Cover | IEC60529 (IP25) | |
| 2. Durable Copper Heater Unit | Yes | |
| 3. On Push On/Off Switch | Yes | |
| 4. Insulated Structure | Yes. IEC 60529 (IP25) | |
| 5. Built-in Earth Leakage Breaker (ELB) | Yes | |
| 6. Water Flow Sensor | Yes | |
| 7. Non-flammable Material Cover | Yes | |
| 8. Manual Reset Thermostat | Yes | |
| 9. Auto Thermal Cut-off | 55ºC | |
| Hygiene Features | Ag+ Antibacterial material | Yes |
| Comfort Features | 3-way Shower | Normal, Wide, Spot |
