DFRobot

Conductive Stainless Thread

Conductive Stainless Thread

Regular price $6.08 USD
Regular price $7.60 USD Sale price $6.08 USD
Sale Sold out
Shipping calculated at checkout.
Resistance
Quantity

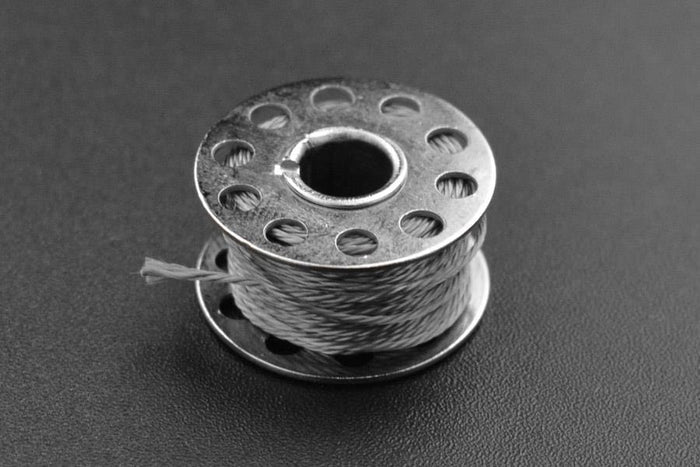

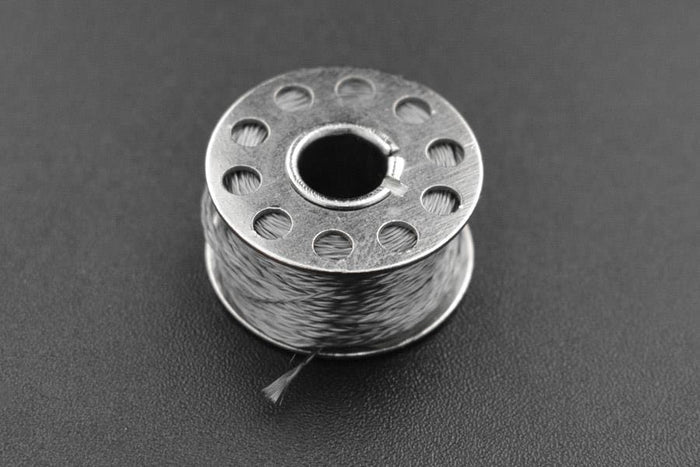

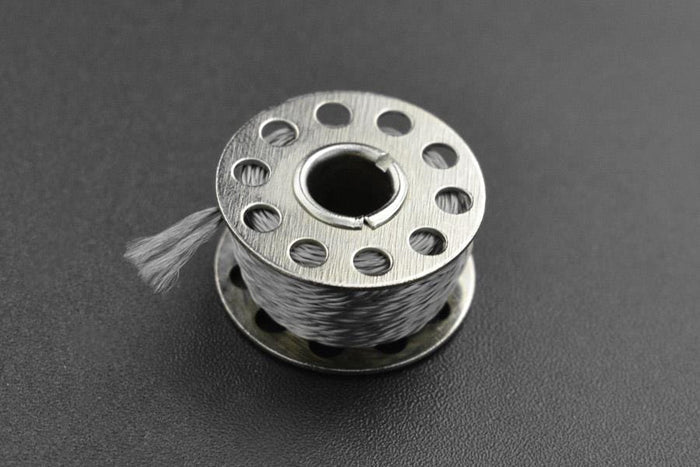

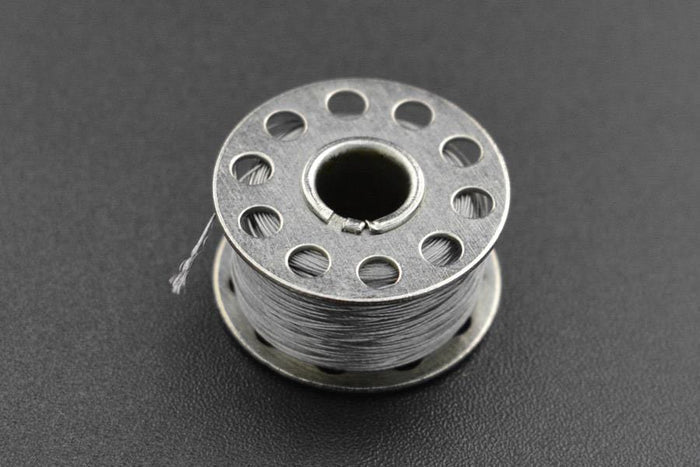

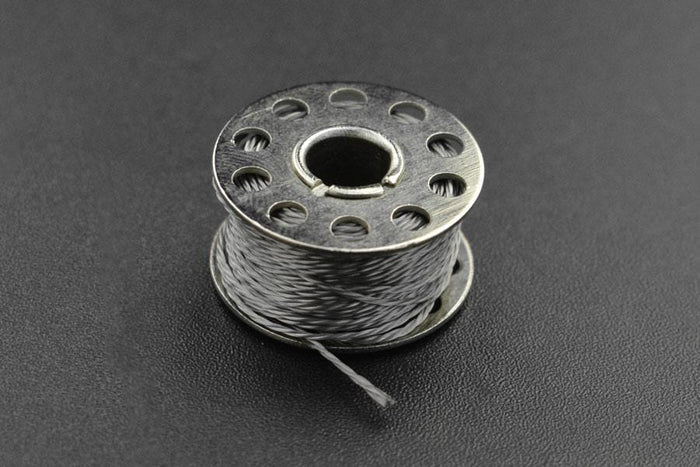

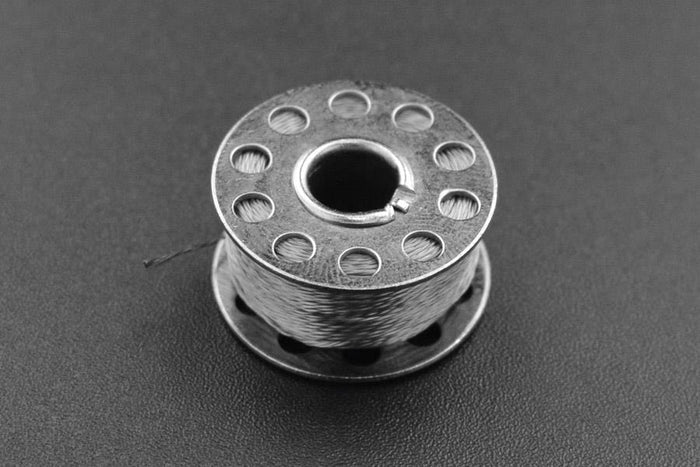

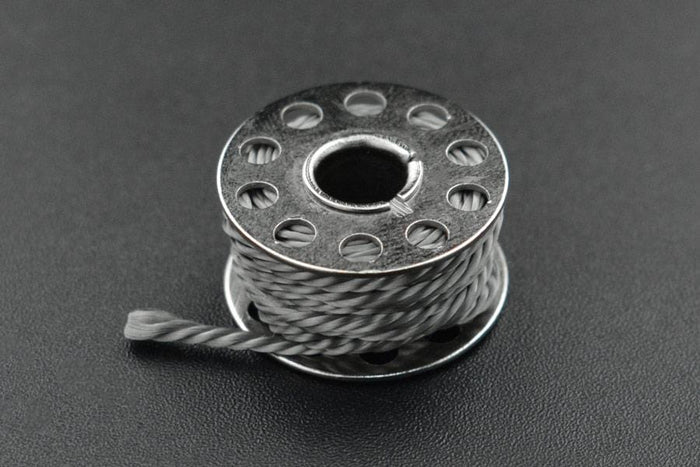

This is a smooth stainless steel fibre conductive sewing thread available with various resistance ratings, diameters and lengths. The reels feature low resistance, good thermal conductivity, a high melting point and high temperature resistance.

The diameter of the wire varies between the reel options - the lower the resistance, the thicker the thread. It can be used for making touchscreen gloves, anti-static clothing, wearable electronic equipment, cosplay items, anti-static brushes, driving LEDs and other small current electronic components.

Note: the thinner the wire, the more resistance it offers. The smaller the resistance value, the thicker the thread, so the length of each roll of these models differs (see table below).

Features

  • Low resistance and stable resistivity
  • High-temperature resistance 650°C, melting point 1350°C
  • Safe to wash, reusable

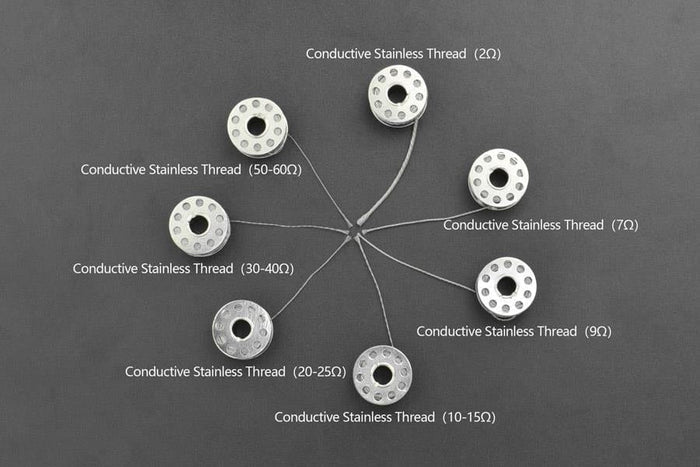

Thread Selection Guide

Resistance Diameter Length
30-40Ω 0.27-0.3mm 20-27m
20-25Ω 0.33mm 13-18m
10-15Ω 0.42mm 9-11m
0.5mm 5m
0.96mm 1m
